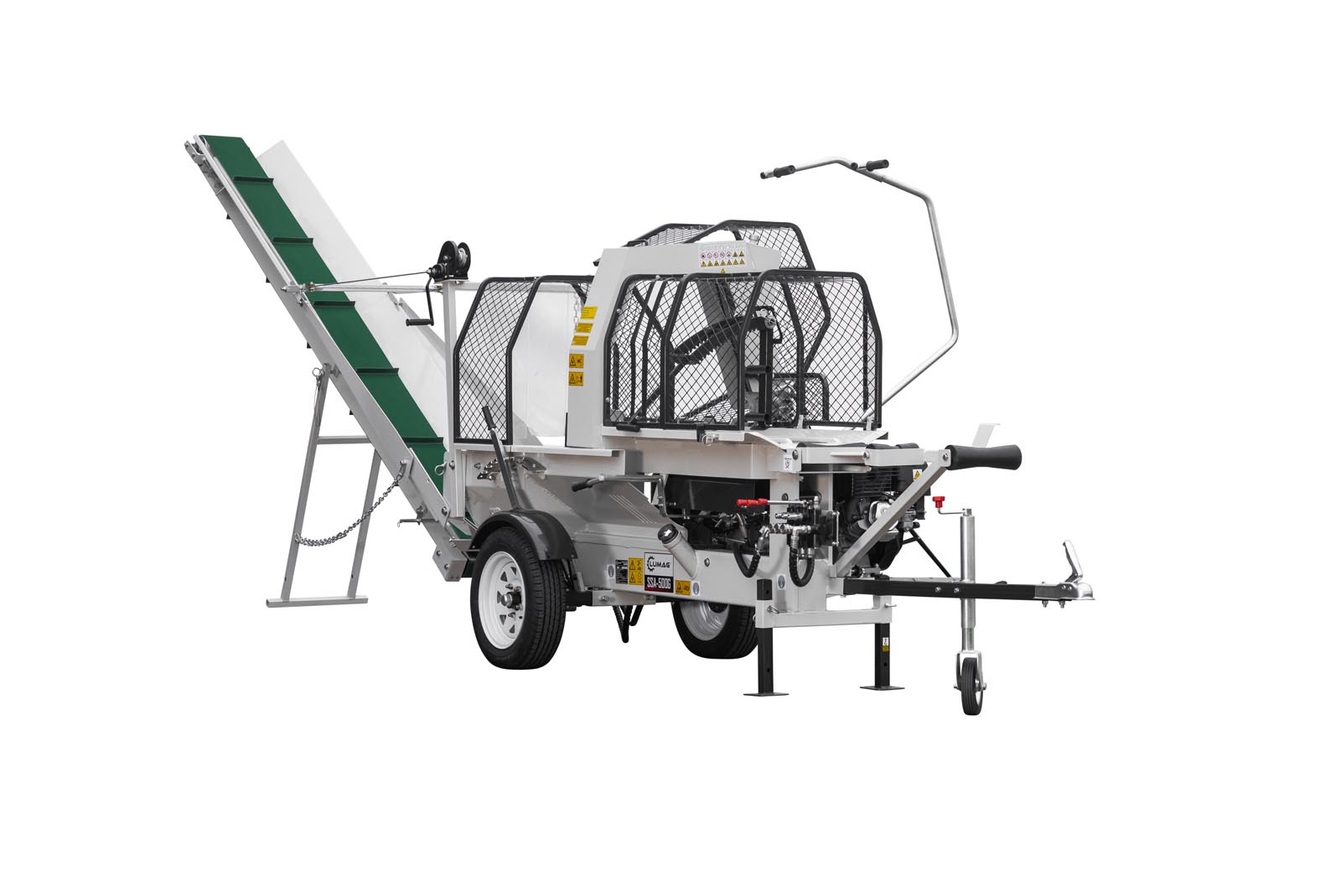

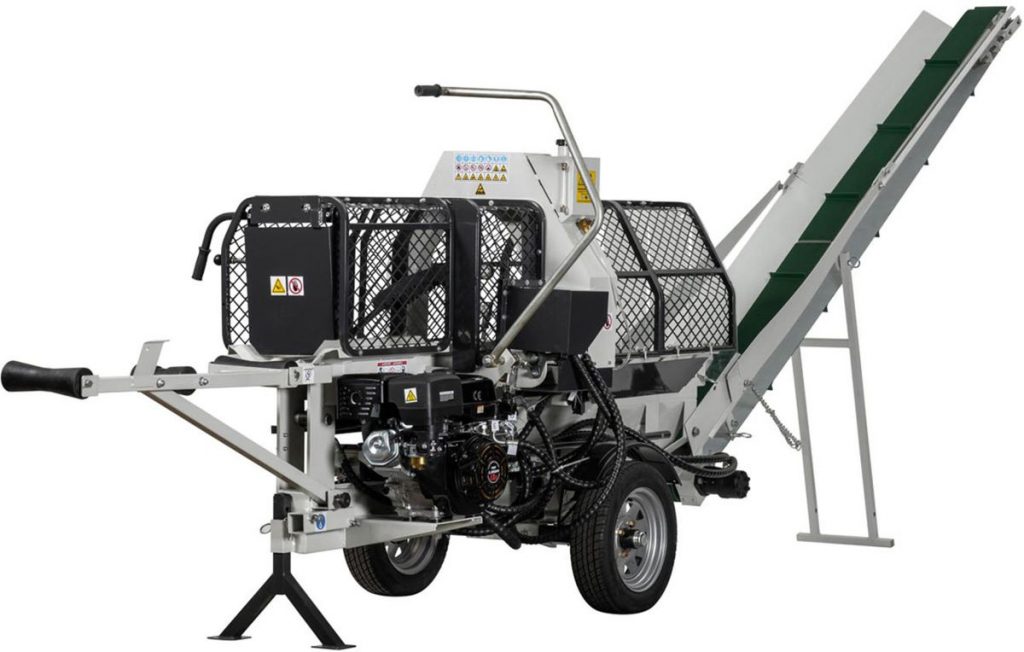

Lumag SSA500G/Z Firewood Processor

– Posted in: Firewood Preperation Log Saws & Processors

The Lumag SSA500G processor enables one operator to process firewood in an efficient manner. Horizontal splitting machine. Simple and easy to use. Wood processing with saw and log splitter in one pass. Fast and efficient. It processes 5 – 8 m³ of wood / hour. Thanks to the powerful engine it is possible to process logs up to 500 mm in diameter. Automatic timber transport by conveyor belt. Machine is fully assembled / 28 L. hydraulic oil /engine oil/ and possible see working in ours warehouse.

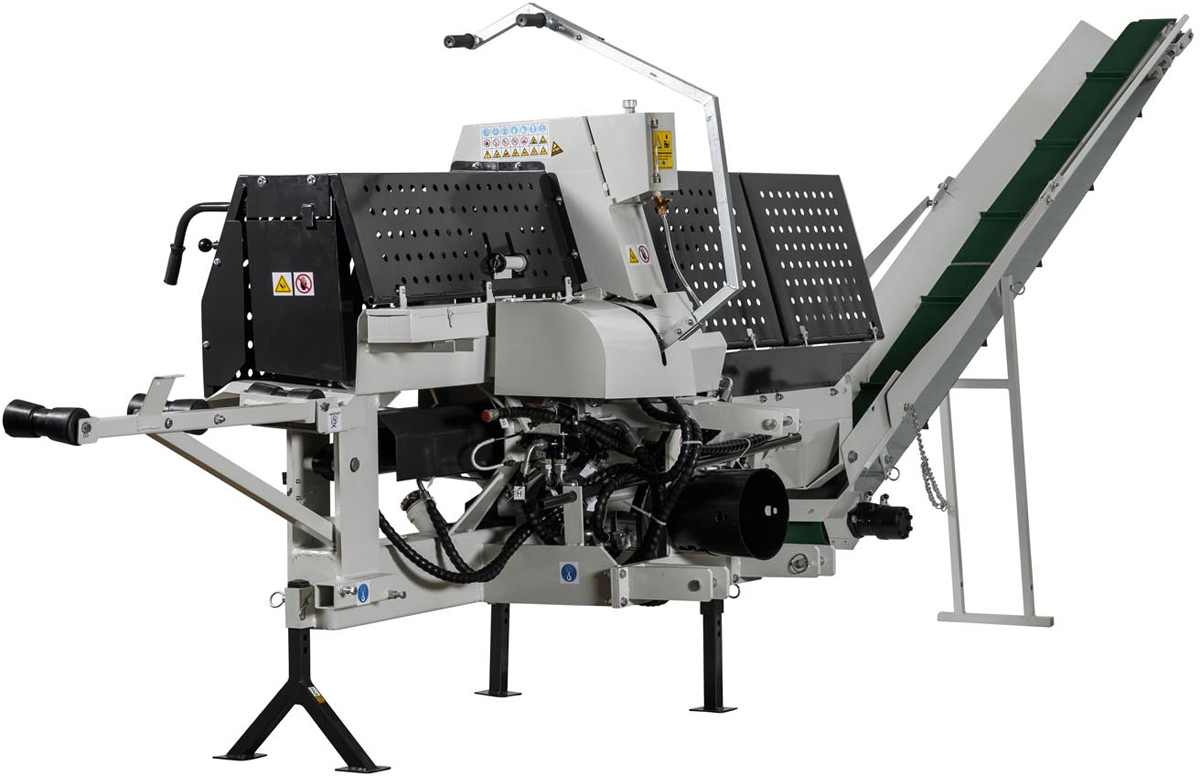

It is also possible with PTO driving, SSA500Z.

SSA 500 G price €7,845.53 excl. 23% vat.        €9,650.00 incl. vat.

SALE 2024 price      €7,479.68 excl. 23% vat.        €9,200.00 incl. vat.

SSA 500 Z price €7,200.00 excl. 23% vat.        €8,856.00 incl. vat.

SALE 2024 price      €6,991.06 excl. 23% vat.        €8,599.00 incl. vat.

Full service and parts is available.

Delivery in Ireland is €120 excl. vat.

Full service / Parts available

Finance available.

Lumag SSA400G Firewood Processor specifications:

Technical parameters:

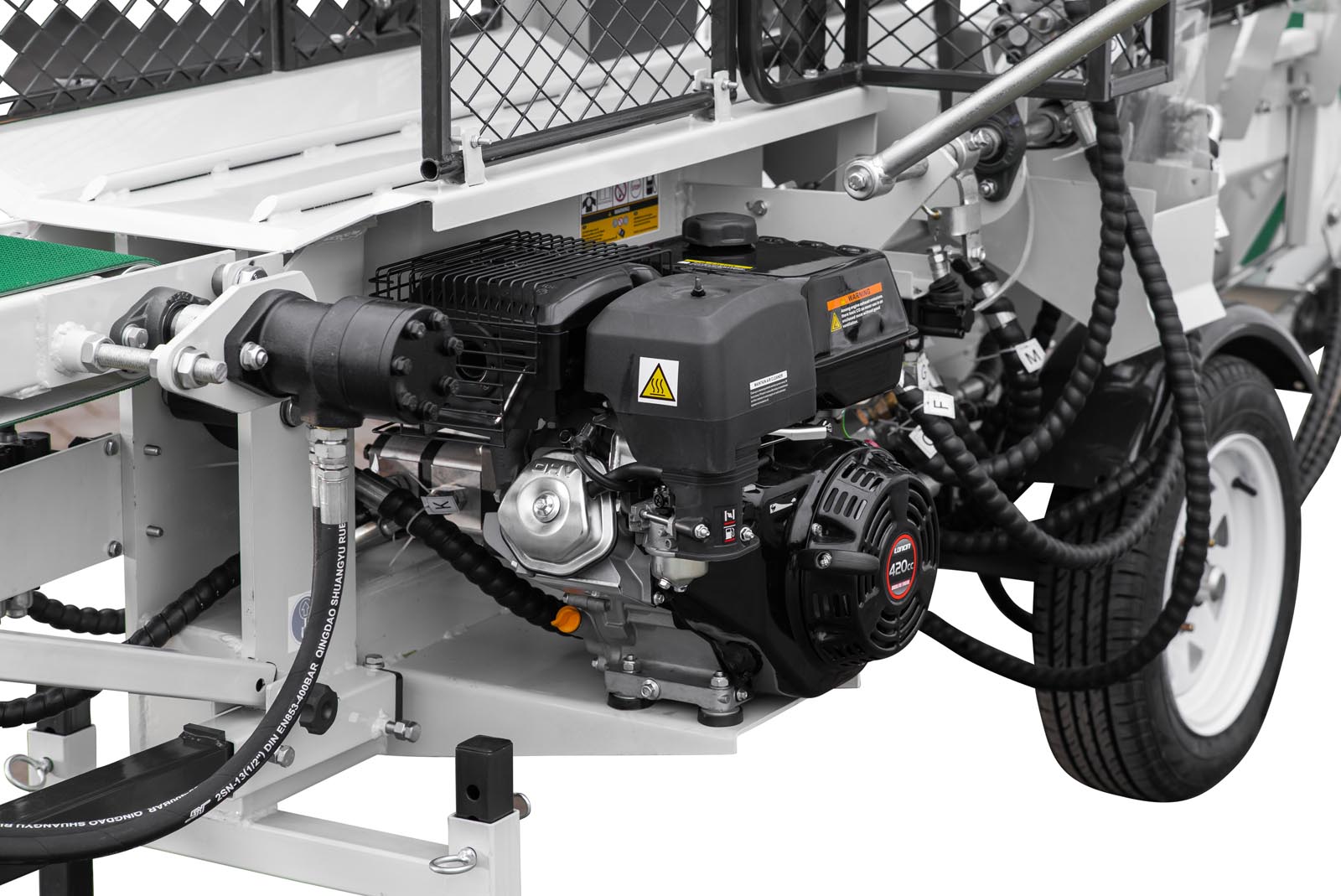

  • Drive: gasoline engine 420 ccm, 9,2 kW 15 hp, SSA500G
  • Drive: PTO available also, SSA500Z
  • Hydraulic drive of saw drive: up to 3000 rpm
  • Conveyor drive hydraulic motor: 284 rpm

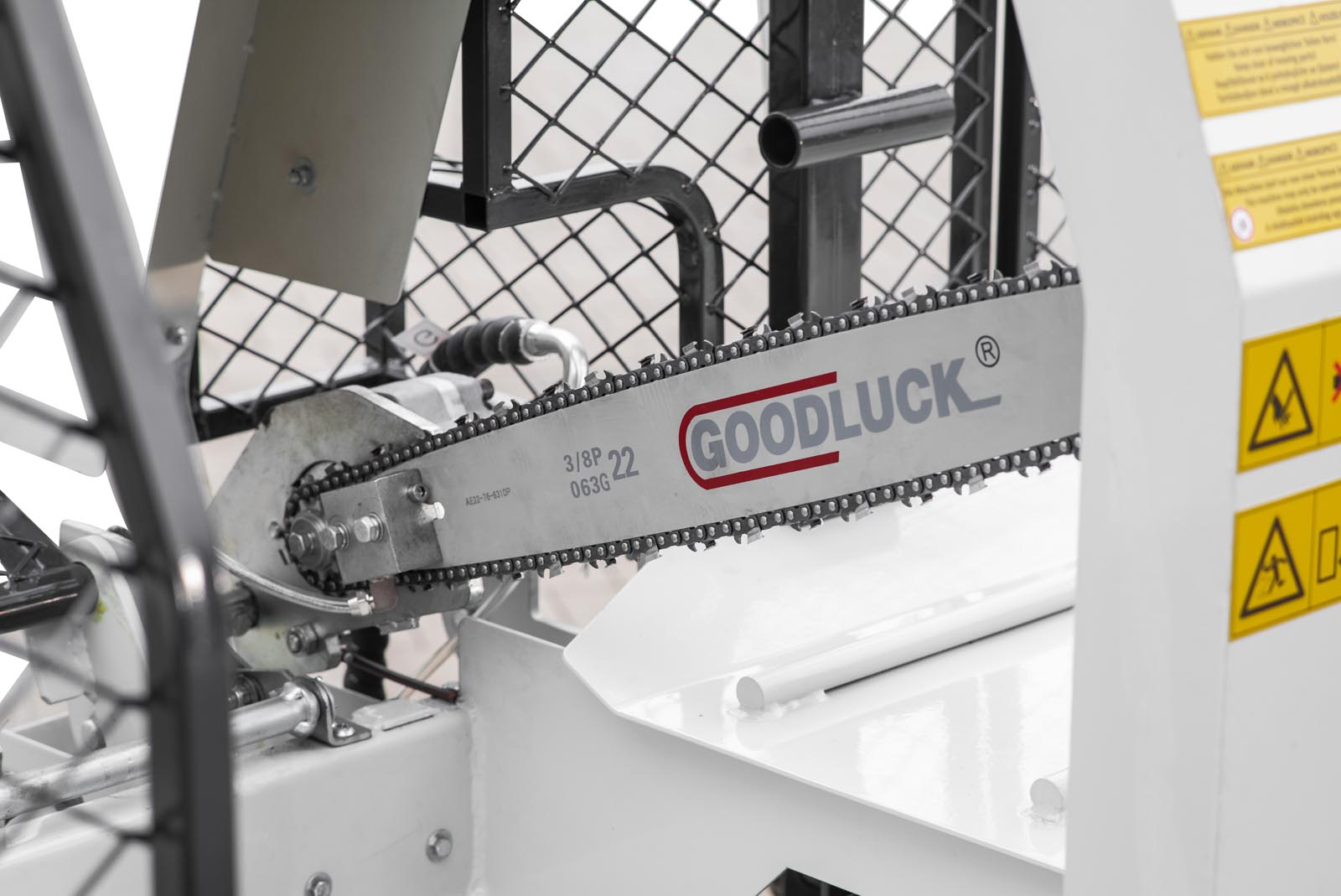

  • Saw chain drive: hydraulic
  • Chain: 72, 325.058 “/ 1.5mm
  • Toolbar 55 cm
  • Min. cutting length: 200 mm
  • Max. cutting length: 610 mm
  • Min. log diameter: 100 mm
  • Max. log diameter: 500 mm

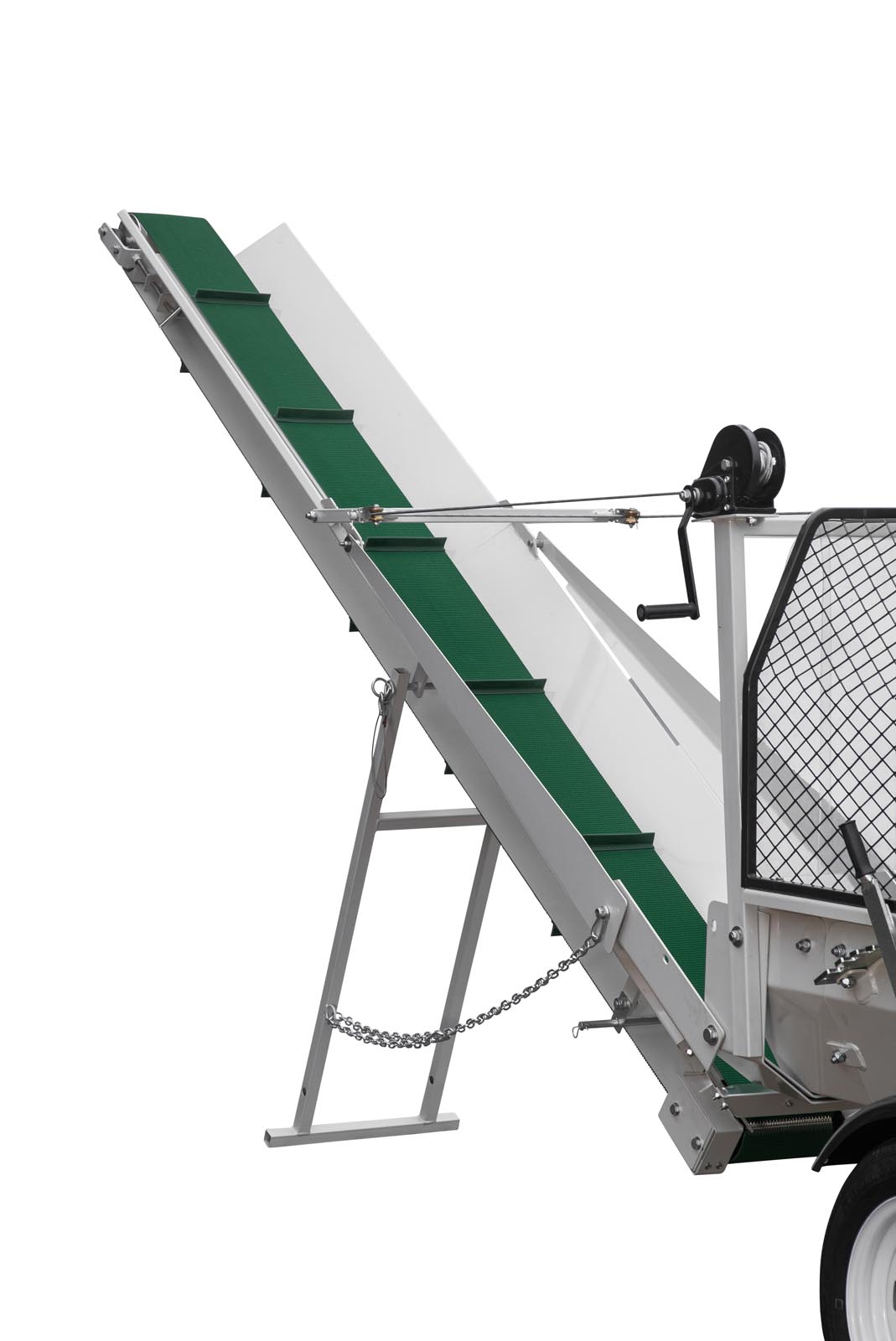

  • Belt conveyor speed: 0.8 m / s
  • Splitting pressure: 20 t

Transport dimensions – semi-automatic (LxWxH): 2100 x 1000 x 1200 mm

Transport dimensions – conveyor (LxWxH): 1860 x 600 x 470mm

Weight (semi-automatic + conveyor): 530 + 110 kg
