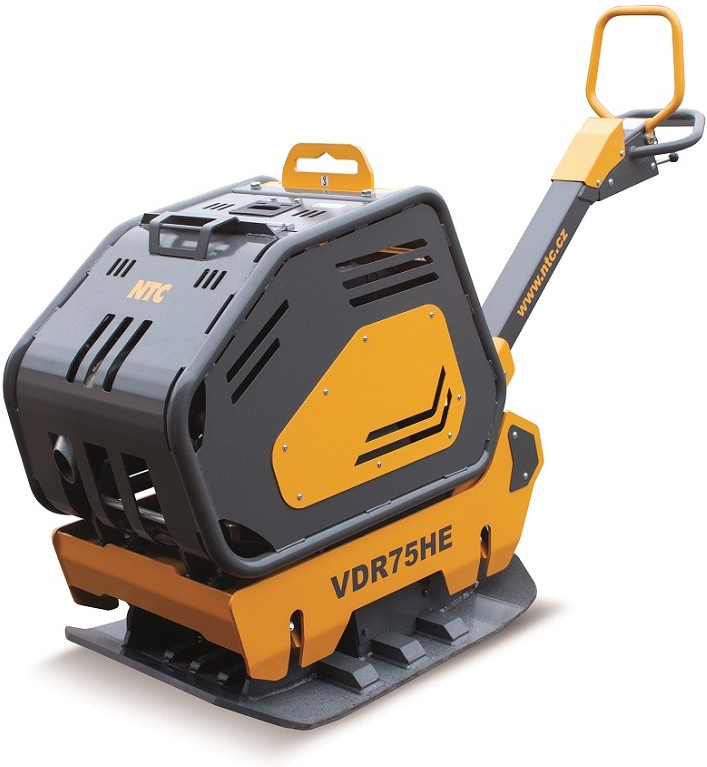

NTC REVERSIBLE COMPACTOR PLATES VDR – VDR 75 HE

– Posted in: Compaction Compactor Plates NTC

€ 11900.00 excl. vat

€ 14637.00 incl. 23 % vat

Powerful compaction machines, especially suitable for soil compaction. Alternatively can be used also for compaction of asphalt layers or pavement (particularly for reversible plates up to 250 kg)

  • Modern Design.
  • High Compaction Effect.
  • Protective Frame.
  • Robust Construction.
  • Damping of the handle against vibrations.
  • Throttle lever built into the control arm.
  • Continuous adjustment of direction and speed of travel.
  • Hydraulic Travel System.
  • System of automatic deaeration and adjustment of the hydraulic circuit.
VDR 75 HE
Mass Kg 605
FrequencyHz 68
Centrifugal forcekN 75
Speedm / min 26
Dimensions of compaction platemm 750 x 1009
EngineHATZ 1D81
Warranty2 years
StartingElectric
Max. power and engine speedkW / min 10.1 / 3600
FuelDiesel
Max climb30%
