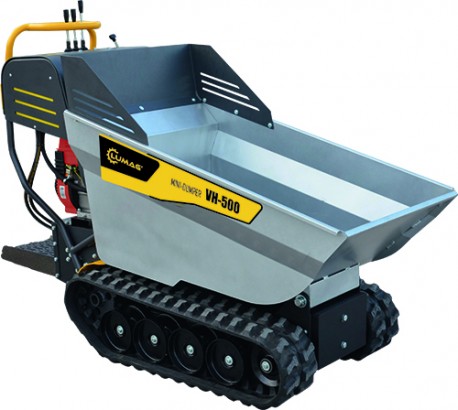

The Lumag VH 500DA mini dumper is a robustly made machine, durability and propelled by a top of the range Danfoss hydraulic pump and fitted with a fuel efficient diesel engine.
Price €5,050.00 excl. vat. €6,211.50 inc. 23% vat.
Sale 2024 €4,890.24 excl. 23% vat. €6,015.00 incl. vat.
Delivery €110.00 excl. vat
Lumag VH 500DA Mini Dumper specifications:
Technical parameters:
| Engine: | 1-cylinder diesel engine |
| Engine capacity: | 296 cm 3 |
| Engine power: | 4.0 kW at 3000 rpm |
| Starting: | electric starter + reverse starter |
| Management: | hydraulic |
| Drive: | Hydrostatic |
| Body dimensions: | length 1000 mm |
| width 700 mm | |
| depth 450 mm | |
| Mass: | 345 kg |
| Maximum load: | 500 kg |
| Bucket lift: | hydraulic |
| Bucket volume: | 0.2 m 3 |
| Hydraulic pump capacity: | 12l / min (at 3000 rpm) |
| Max. Hydraulic pressure: | 200 bar |
| Working speed: | max 2.9 km / h |
| Reverse: | max 2.3 km / h |
| Light height: | 55 mm |
| Track width: | 336 mm |
| Max. possible tilt: | 30 ° |
| Machine dimensions (LxWxH): | 1500x720x1240 mm |
| Transport dimensions (LxWxH): | 1800x600x370 mm |
Properties:
- The fully hydraulic professional mini dumper VH 500 DA is the perfect helper for all
transport applications in various industries. - Equipped with KAMA diesel engine.
- Tipping the body with the help of a hydraulic piston.
- It can handle up to 500 kg of cargo.
- Only 72 cm wide allows you to drive on narrow roads and permeability to most doors or gates.
- Solid steel construction ensures long life.
- Equipped with a step.
