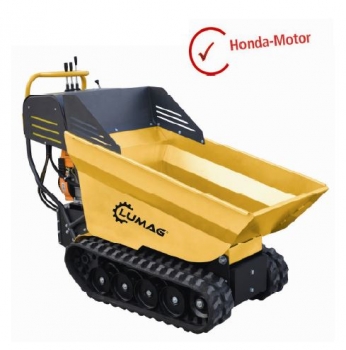

Lumag VH 500 GXA Mini Dumper

– Posted in: Mini Dumpers Track Dumpers

The Lumag VH500 GXA Mini dumper is a fully hydrostatic, robustly made machine, which is manufactured with durability and ease of operation in mind. It is propelled by a top of the range Danfoss hydraulic pump. It is fitted with a Honda GX200 engine.

 Price               €4.830.00 ex. vat.               €5,940.90 incl. 23% vat.

Sale  2024    €4,589.43 excl. 23% vat.     €5,645.00 incl. vat.

Delivery €110.00 excl. vat

Lumag VH 500 GXA Mini Dumper specifications:

Technical data:

Engine: 1-cylinder gasoline 4-stroke HONDA, OHV
Engine capacity: 196 cm 3
Engine power: 4.1 kW at 3000 rpm
Starting: reverse starter
Fuel: unleaded gasoline
Management: hydraulic
Drive: Hydrostatic
Body dimensions: length 1000 mm
width 700 mm
depth 450 mm
Mass: 345 kg
Maximum load: 500 kg
Bucket lift: hydraulic
Bucket volume: 0.2 m 3
Hydraulic pump capacity: 12l / min (at 3000 rpm)
Max. Hydraulic pressure: 200 bar
Working speed: max 2.9 km / h
Reverse: max 2.3 km / h
Light height: 55 mm
Track width: 336 mm
Max. possible tilt: 30 °
Machine dimensions (LxWxH): 1500x720x1240 mm
Transport dimensions (LxWxH): 1800x600x370 mm


  • The fully hydraulic professional mini dumper VH500 GXA is the perfect helper for all
    transport applications in various industries.
  • Fitted with HONDA engine
  • Tipping the body with the help of a hydraulic piston.
  • It can handle up to 500 kg of cargo.
  • Only 72 cm wide allows you to drive on narrow roads and permeability to most doors or gates.
  • Solid steel construction ensures long life.
  • Equipped with a step.
