Lumag MD500H Mini Dumper

– Posted in: Mini Dumpers Track Dumpers

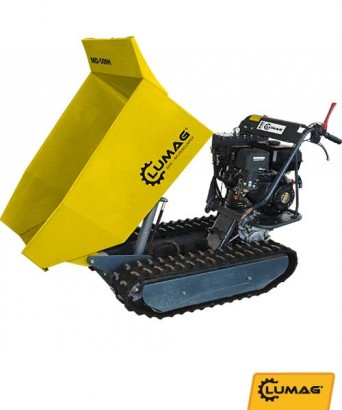

The Lumag MD500H mini dumper is based on the original Lumag MD500 chassis.  Tipping is fully  hydraulic dumping ram. The machine is still only 715mm wide and great to get in those hard to reach areas. “Greedy Boards”, a “md300 style box” and plough are available as extras. 3 forward gears,1 reverse gear. Dimension (LxWxH) 1650x715x960 mm

RRP.Price

€2889.00 ex. vat               €3553.47 inc. vat

2020 Spring sale

€2600.00 ex. vat     €3198.00 inc.vat

Lumag MD 500H Mini Dumper specifications:

Technical parameters:

Engine 1-cylinder gasoline 4-Stroke-OHV
Content 270 cm³
Performance 6.8 kW (9 hp)
Starting Reverse
Braking Automatic safety
Management Skidding
Hydraulic pump 12 l / min at 3000 rpm
Dimensions of sidewalls Length 1000mm

Width 700mm

Side wall height 450 mm

Mass 275 kg
Max. 500 kg
Working speed Speed ​​1 – 1.6 km / h

Speed ​​2 – 2.9 km / h

Speed ​​3 – 3.6 km / h

Reverse gear – 1.2 km / h

Dimensions 1650/715 / 960mm

Properties:

  • The small tracked dumper is designed for ease of use, for example, to transport loads over rough terrain or to clear snow.
  • The container is easily emptied simply by tilting.
  • Only 70 cm wide allows you to drive on narrow roads and pass through most doors or gates.
  • Hydraulic lift
  • Possibility to buy accessories: snow plow, raised body, wood pillars
