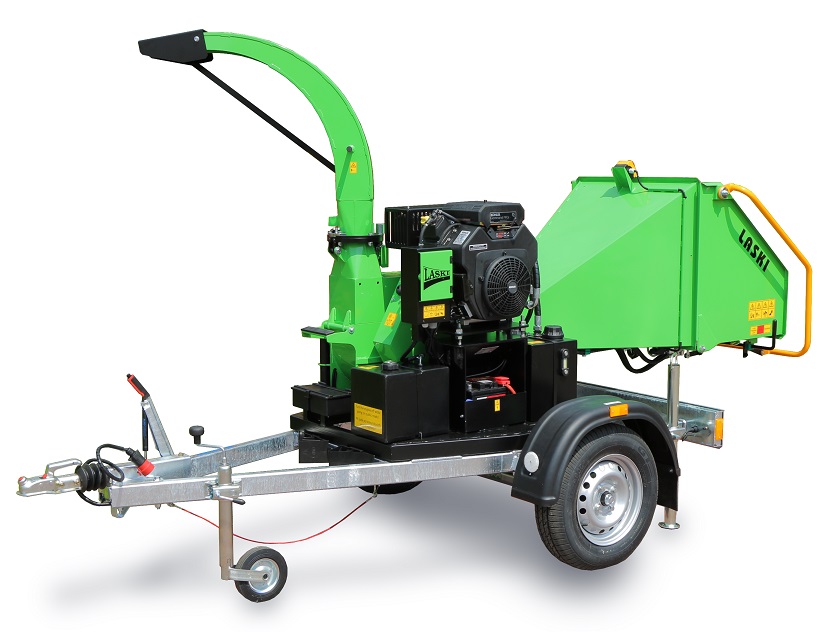

Chipper with petrol engine on braked chassis
The chipper LS 100/27 C is designed for disposal of wood waste, twigs, bark, branch-wood and other above-ground biomass. It can dispose all these materials with diameters up to 100 mm. The chipper is also equipped with a loading roll hydraulically controlled and linked to an automatic system as overload protection of its combustion engine. Furthermore, standard equipment comprises also hour counter (daily/total), turnable and tiltable discharge duct and air-cooled 25 HP Kohler engine.
This chipper assembly, completed also with an overrun brake, can be coupled to towing vehicles (even passenger cars). For such a road train up to 3,5 t the driver should keep a driving licence at least of the group B.
€12,902.44 excl. vat €15,870.00 incl. 23% vat
| Technical parameters: | |
| Engine | Kohler CH 740S, gasoline |
| Performance | 18.3kW (25HP) |
| Fuel Tank | 126l |
| Fuel Consumption | 7 l/hr |
| Safety | Safety Grip |
| Braking | Over-run brake |
| Management | Master Power Switch |
| Dimensions | |
| Lenght | 3653mm, 3130 (Transport) |
| Width | 1595mm |
| Height | 2080mm |
| Weight | 630 kg |
| Load | 3 – 8 m3/hr |
| Cutting Head | |
| Diameter | 466mm |
| Blades | 4 |
| Chip Lenght | 11mm |
| Feeding Device | |
| Feeding hole size | 180x140mm BxH |
| Number of rolls | 2 (upper roll driven) |
| Hopper | |
| Feeding Profile | 800x735mm BxH |
